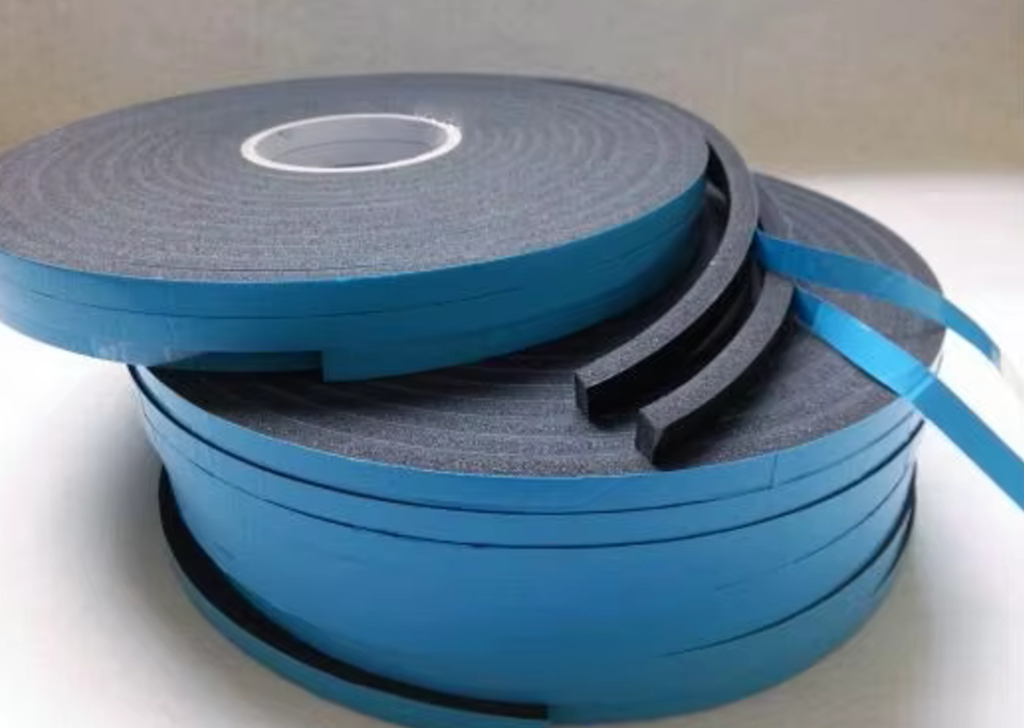

Structural Glazing Spacer Tape
Structural glazing spacer tape is a spacer used for joint size control in structural silicone glazing systems. It is designed for structural silicone glazing systems and can provide stable spacing effects for glass, metal, stone, mineral cement and plastic panels. This type of tape is used to temporarily fix glass or other panels to the frame when manufacturing unitized structural silicone glazing and cladding systems in the workshop. It can ensure the close fit of the finish to the substrate during the curing of the permanent structural silicone adhesive. At the same time, the spacer tape can also play a role in insulation and reduce heat conduction, thereby providing a uniform sight effect in the viewing area.

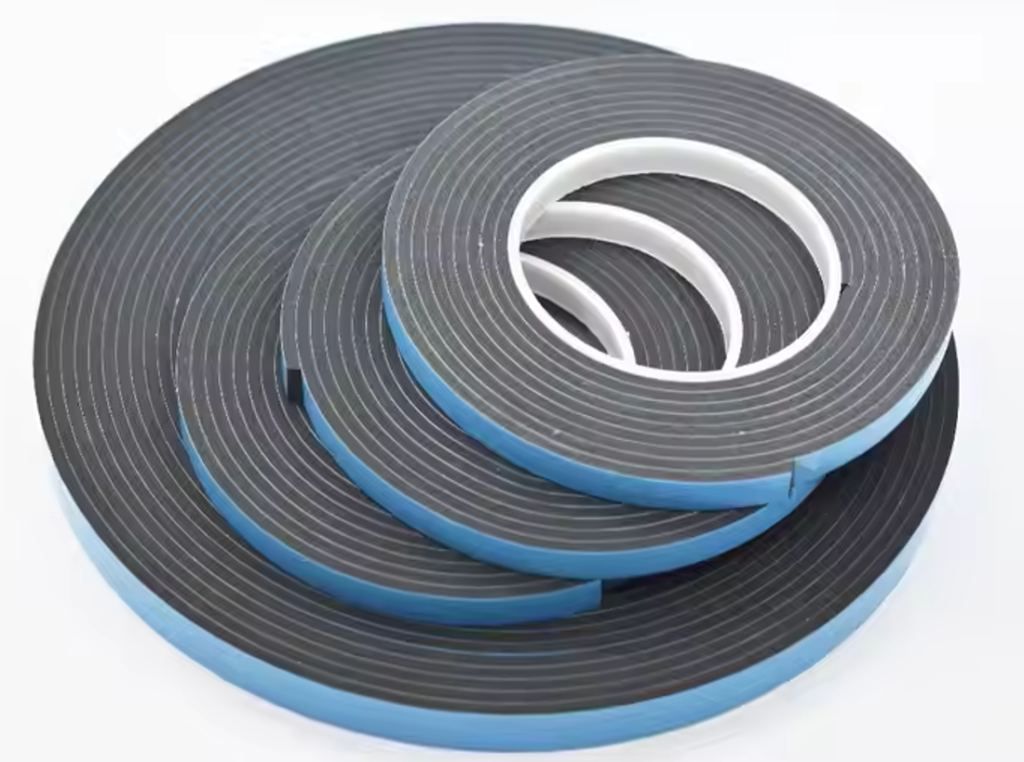

Different Types of Structural Glazing Spacer Tapes
Because of different application requirements, we currently mainly provide two types of glass spacer tapes: open-cell PVC foam tape and closed-cell EVA foam tape. Among them, PVC material is closer to Norton, while EVA material is more economical.
- Open-cell PVC foam spacer tape: It has good air permeability and weather resistance, suitable for glass systems in complex environments.
- Closed-cell EVA foam spacer tape: More economical, the closed-cell design provides better insulation and reduces air and moisture penetration.
-
Structural glazing tape
1mm Glazing Tape
Original price was: $15.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 8mm*6mm*7.5m (eva)
Original price was: $7.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 8mm*12mm*7.5m (eva)
Original price was: $11.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 8mm*8mm*7.5m (eva)
Original price was: $8.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 8mm*10mm*7.5m (eva)
Original price was: $10.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 6.4mm*12mm*10m (eva)
Original price was: $7.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 6.4mm*10mm*10m (eva)
Original price was: $8.00.$3.00Current price is: $3.00. Add to cart -
Double Sided Foam Tape
Tape Glazing 6.4mm*8mm*10m (eva)
Original price was: $9.00.$3.00Current price is: $3.00. Add to cart
Product Features and Benefits
Toptape’s structural glass spacer tapes are designed not only for dimensional control, but also for durability and versatility. With high-density foam materials, structural glass spacer tapes from Toptape have stronger adhesion and lifespan, and are better adaptable to various environmental conditions. Whether in hot or humid environments, these tape products can maintain stable performance.
High-density foam material
Provides higher hardness and support, suitable for more demanding building structures.
Excellent bonding performance
Excellent retention, peel strength and initial adhesion ensure that the product is firm and durable during installation.
Impact, heat, moisture resistance
Ensure that the product can still work stably in various harsh environments and extend its service life.
Good adhesion to various materials
Can perfectly fit with a variety of materials such as metal, plastic, paper, wood and silicone.
Sound insulation and anti-seismic effect
Especially suitable for use in construction areas or places where sound insulation is required, it helps to reduce vibration and reduce noise conduction.
Reduced heat conduction
Effectively isolates heat, provides a more comfortable environment, and reduces energy consumption.
Product parameters
In order to facilitate customers to choose the right structural glass spacer tape, a clear product parameter table is essential. Understanding the material, thickness, width and temperature range of the tape can ensure that the right model is selected for different projects to meet specific application requirements. Detailed product parameter descriptions are provided on the below for user reference.
Product No. | carrier | Thickness mm | Density kg/m3 | Hardness Shore C |
PVC structural glazing tape | TGV-3 | PVC foam, open cell | 3.2 | 350 |
PVC structural glazing tape | TGV-4 | PVC foam, open cell | 4.8 | 350 |
PVC structural glazing tape | TGV-6 | PVC foam, open cell | 6.4 | 350 |
PVC structural glazing tape | TGV-8 | PVC foam, open cell | 8 | 350 |
PVC structural glazing tape | TGV-9 | PVC foam, open cell | 9 | 350 |
PVC structural glazing tape | TGV-10 | PVC foam, open cell | 10 | 350 |
EVA structural glazing tape | TGE-3 | EVA foam, close cell | 3.2 | 100 |
EVA structural glazing tape | TGE-4 | EVA foam, close cell | 4.8 | 100 |
EVA structural glazing tape | TGE-6 | EVA foam, close cell | 6.4 | 100 |
EVA structural glazing tape | TGE-8 | EVA foam, close cell | 8 | 100 |
EVA structural glazing tape | TGE-9 | EVA foam, close cell | 9 | 100 |
EVA structural glazing tape | TGE-10 | EVA foam, close cell | 10 | 100 |

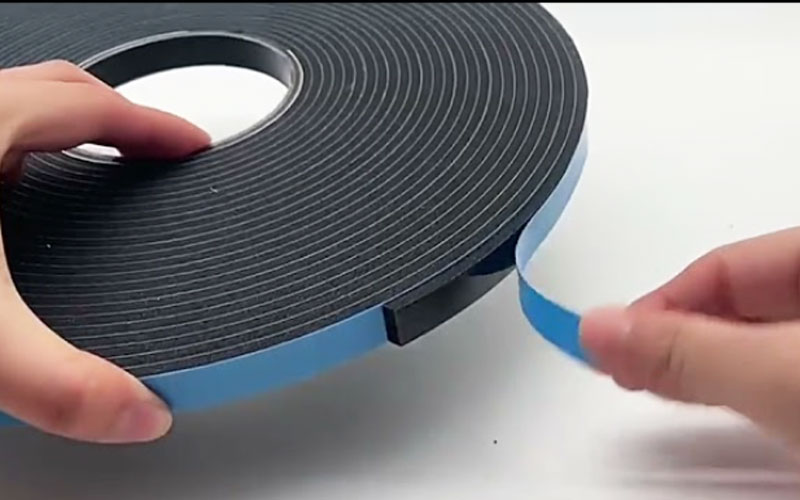

How to use structural glazing spacer tapes?
The correct use of structural glass spacer tape is the key to ensuring that its function is maximized. During the installation process, standard steps should be followed, including surface cleaning, correct cutting and fixing of the tape. Understanding these steps can effectively improve installation efficiency and ensure installation quality, so that the tape performs well in actual use.
- Ensure that the application surface is clean, free of oil and dust.
- Cut the spacer tape as needed, and when using it, directly tear off the protective layer of the adhesive backing and adhere the tape to the surface of the glass or frame.
- Press the tape to make it fit fully, ensuring that no air bubbles remain under the tape.
- The tape will temporarily fix the glass or other panels in place before the structural silicone adhesive is fully cured.
- After curing, the joints formed between the glass and the substrate will maintain uniform spacing, ensuring the design is beautiful and functional.
How to choose the right spacer tape?
Suitable selection of structural glass spacer tape requires careful evaluation based on specific project requirements. Different materials, thicknesses and bonding abilities are suitable for different construction scenarios and conditions. By analyzing the application environment, material properties and construction requirements of the project, the spacing tape that best meets the project requirements can be selected to ensure the smooth completion of the project. When choosing a suitable structural glass spacing tape, the following factors should be considered:
- Material selection: Because of the application environment is different, customers can choose open-cell PVC foam or closed-cell EVA foam for different uses. PVC materials are suitable for more complex external environments, while EVA is more economical and applicable.
- Thickness requirements: Select structural glazing spacer tapes of different thicknesses according to the joint size requirements to ensure the accuracy of the installation effect.
- Adhesion ability: For substrates of different materials, tapes with good adhesion should be selected to ensure long-term bonding effects.
- Environmental tolerance: According to factors such as the temperature and humidity of the environment, products with appropriate temperature resistance and moisture resistance should be selected.
- Sound insulation and heat insulation requirements: If there are special sound insulation and heat insulation requirements, tapes with good sound insulation and heat conduction suppression effects should be given priority.
Price of glass spacing tape
Product Application of Glazing Spacer Tapes
Structural glass spacer tape that made by Shanghai Toptape is widely used in many fields, especially in projects such as building curtain walls and unitized structural glass systems, playing a key role. It not only provides reliable spacing support, but also improves the thermal insulation and sound insulation of the project, and is an indispensable part of efficient building design.
- Structural silicone glass system: used to control the joint size between glass and substrate to ensure the beauty and functionality of the installation.
- Curtain wall system: plays a supporting and spacing role in the installation of glass curtain walls, reduces heat conduction and provides sound insulation.
- Indoor and outdoor buildings: used in building systems that require precise joint control, such as metal, plastic, stone and other surface applications.
- Earthquake and sound insulation: Used in construction areas or places that require sound insulation and earthquake resistance to reduce vibration and noise.

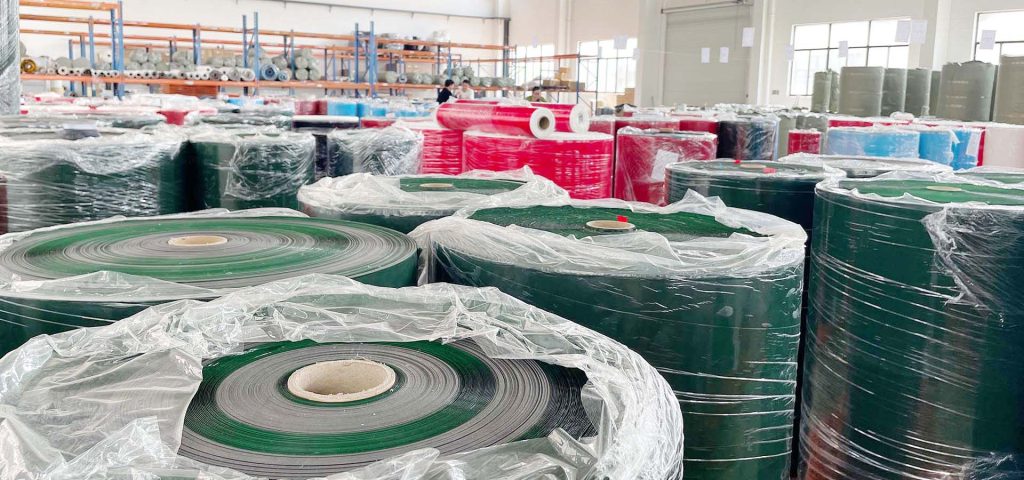

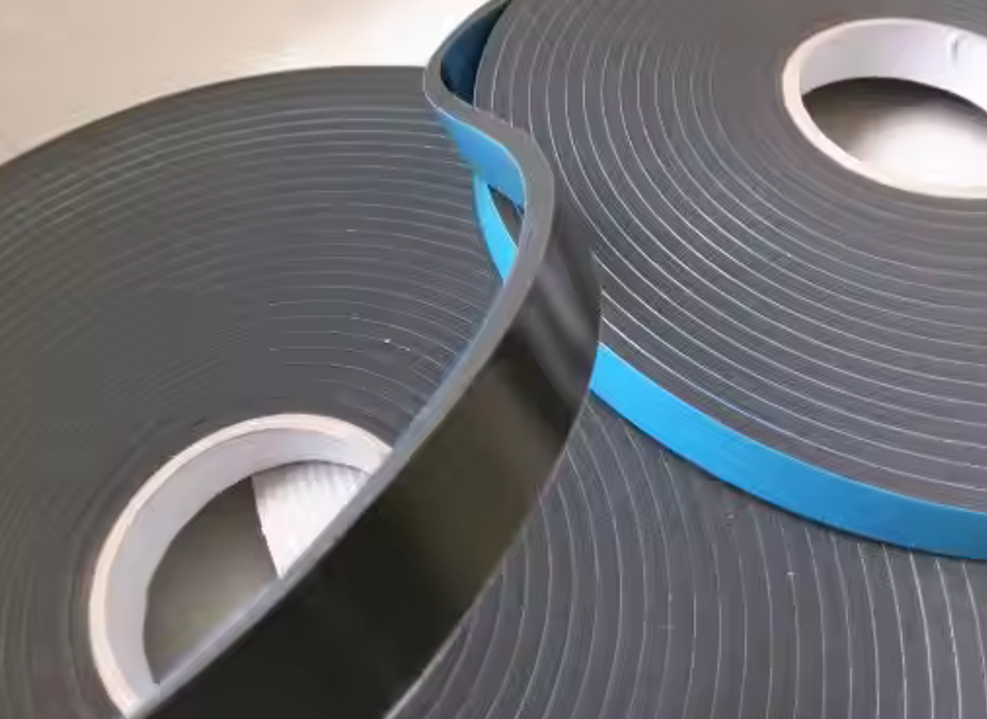

Shanghai Toptape - Spacer Tapes Manufacturer
Toptape is a professional manufacturer of varies of foam tapes and foams with advanced production equipment and more than ten years of industry experience. Our factory mainly produces various types of foam tapes(single side and double side), structural glazing spacing tapes, including open-cell PVC foam tapes and closed-cell EVA foam tapes.
Toptape provides a wealth of customization options to meet the needs of different customers while ensuring the high quality and performance of the products. Shanghai Toptape is committed to providing high-quality adhesive tape products and suitable tape solution for multiple industries including construction, electronics and automobiles.
